Toilet Question/Need Advice

Don Davis

Well-Known Member
Joined
Mar 2, 2020
Messages
353
Reaction score
116
Points
43
Age
59
Location
Courtenay, British Columbia
Model
Seafarer
Hello I hope everyone is well and safe during this Covid pandemic. I’m working through my To Do list on my Project Grady and need advice on the toilet as I have never had a toilet in a boat before only my camper. I will attach some photos of what it currently looks like in my boat. There is a circuit breaker in the starboard cabin/Cuddy compartment which looks like it should connect to the flush switch but the red wire is corroded off and laying just below the third picture. I’m not familiar with the function of the circuit breaker but I’m thinking it connects to the cockpit switch to energize the flush switch? Should I replace this circuit breaker? It looks fairly corroded and then reconnect the corroded wire that is below the picture? Thank you


Attachments

  • 5396CD80-74EA-4EB2-A0AB-935A8FCC7DCD.jpeg
    2.2 MB · Views: 95
  • 9656C0D6-40C5-48FA-95E5-903592F1F0CC.jpeg
    1 MB · Views: 98
  • 065A11ED-6FA7-4F83-87AA-DAB0EC26C133.jpeg
    1.6 MB · Views: 99

Fishtales

Well-Known Member
Joined
Jan 31, 2005
Messages
7,496
Reaction score
1,161
Points
113
That is a breaker for sure. See if you have 12V there. If so, clean the connections up and see if you have power to the head. Looks like a vacu flush. Is there a power button somewhere as I don't see a foot pedal.


Ky Grady

GreatGrady Captain
Staff member
Joined
Mar 1, 2006
Messages
2,914
Reaction score
1,271
Points
113
Location
Berea, KY/Cross, SC
Model
Seafarer
That is a breaker for sure. See if you have 12V there. If so, clean the connections up and see if you have power to the head. Looks like a vacu flush. Is there a power button somewhere as I don't see a foot pedal.

Flush is the push button on the right side of first pic.


seasick

Well-Known Member
Joined
Aug 19, 2008
Messages
9,073
Reaction score
1,293
Points
113
Location
NYC
First thing to do is check for voltage at both the terminal with the red wire and the other end of the red wire. Use a test lamp. One cable end should have 12 volts assuming battery switch is on and there are no other switches that say 'toilet'. If it doesn't you need to see where the wires go and find out why there is no voltage.
If one does, touch the two red wires together. if that does not cause a big spark, have someone hold the flush button in and touch the wires again. You should hear the toilet run.
If you are lucky and that works, either the breaker needs to be cleaned up or replaced.Assuming you cleaned and reconnected the two wires and made sure the reset button is pressed in.

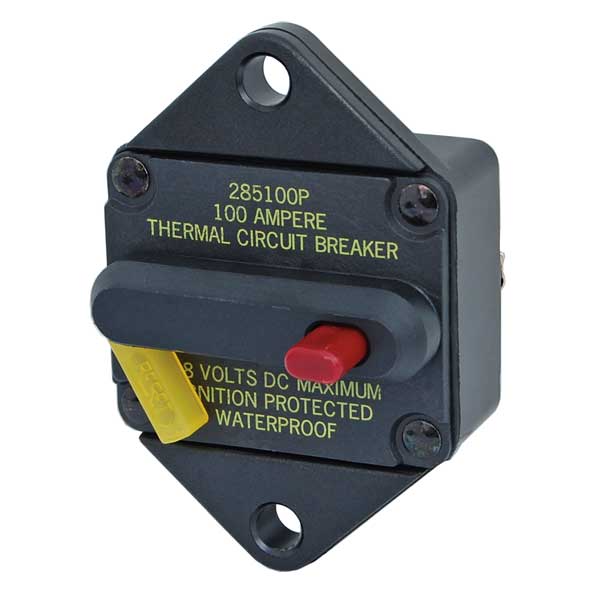

This should do as a replacement
